Tutorial | Agent evaluation#

Get started#

Once you’ve built an agent, you need insight into its behavior. The Evaluate Agent recipe, and its output of a GenAI evaluation store, is key to achieving that goal.

Objectives#

In this tutorial, you will:

Use the Evaluate Agent recipe to assess and monitor the performance of an agent in both pre-deployment and post-deployment phases.
Visualize the trajectory of an agent’s tool calls, and inspect other native and custom evaluation metrics.
Incorporate this recipe’s output (a GenAI evaluation store) into Dataiku’s broader model lifecycle toolbox, including automation scenarios and production environments.

Prerequisites#

Dataiku 14.3 or later.
Advanced LLM Mesh license flag activated.
Full Designer user profile.
LLM connections for computing embeddings and requesting prompts. See the reference documentation for information on LLM connections.
A Python 3.9+ code environment containing the required packages. Use the preset named Agent and LLM Evaluation.
Knowledge of agents in Dataiku; in particular, how visual agents call tools.

Create the project#

From the Dataiku Design homepage, click + New Project.
Select Learning projects.
Search for and select Agent Evaluation.
If needed, change the folder into which the project will be installed, and click Create.
From the project homepage, click Go to Flow (or type g + f).

Note

You can also download the starter project from this website and import it as a ZIP file.

Use case summary#

While building an agent, the agent’s own Design tab and a Prompt Studio are two forums to test its behavior. However, agentic AI applications can develop surprising behavior in different environments when exposed to previously untested inputs. Therefore, as you move the agent toward pre-deployment and post-deployment phases, you’ll need a more robust evaluation strategy to ensure your agent continues to work as expected.

Agent performance is uniquely evaluated across two dimensions:

The agent’s output
The path to the agent’s output.

You can apply LLM evaluation metrics to an agent to measure its answer to the user. However, it’s also valuable to assess how an agent arrived at that answer: the types and order of the tools the agent called to craft its response.

Tutorial | Visual agents demonstrates building an industry tracking agent that sends email summaries of AI news articles using a knowledge bank search tool and a send message tool. A more sophisticated agent would have access to a much larger basket of tools.

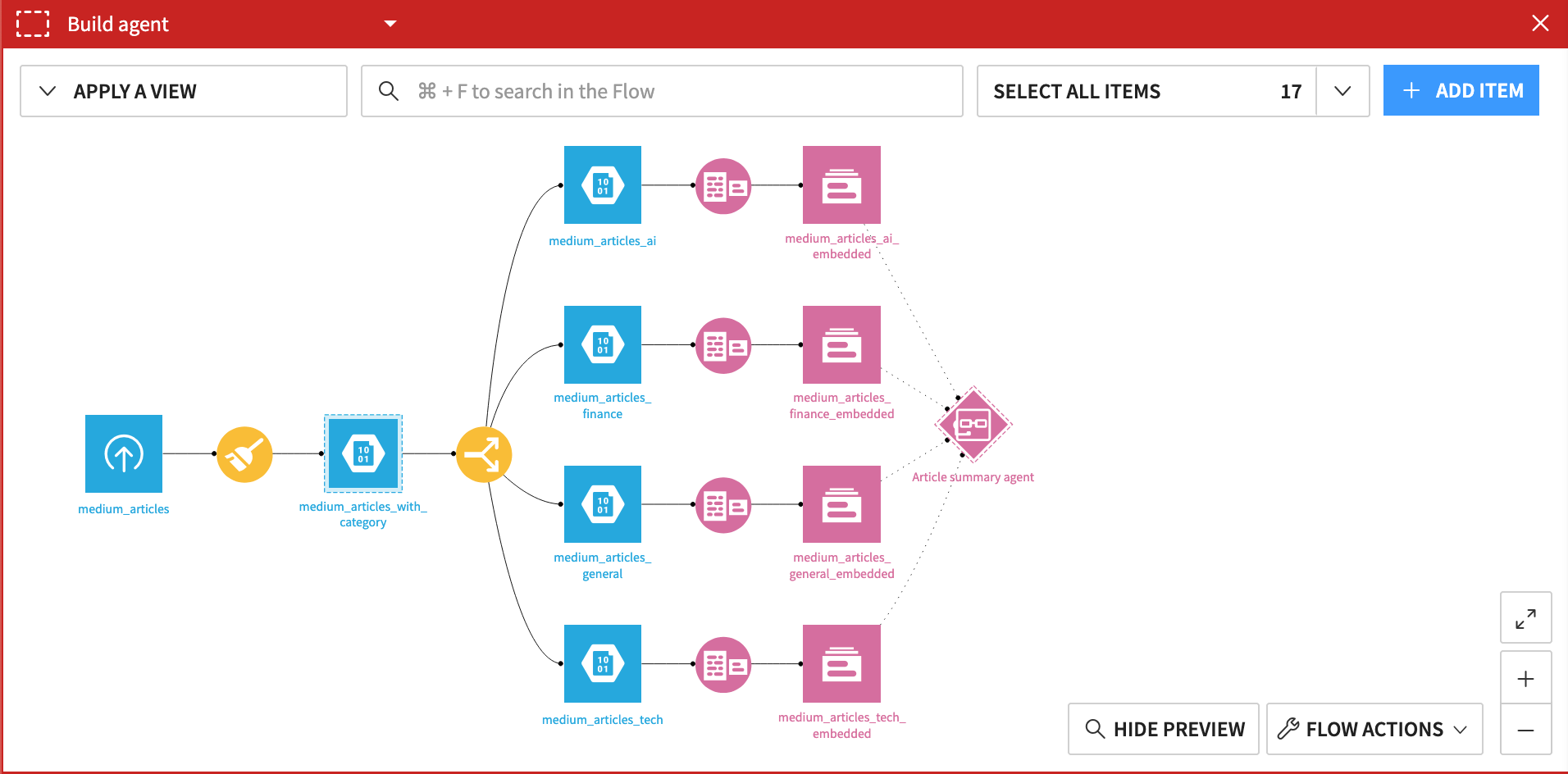

Accordingly, this tutorial extends this simple example to an industry tracking agent covering multiple industries. Instead of one knowledge bank of AI articles, you can imagine an agent needing to select between multiple knowledge banks, each built from articles on different industries.

To evaluate an agent such as this, it’s necessary to look beyond the agent’s generated output. You also need to examine if the tool call trajectory matches your expectations. For an agent like this, you’d have questions like:

Did the agent call the correct knowledge bank?
Did the agent find an article to summarize?
What does the agent do when it can’t find an article to summarize?

Important

The Evaluate Agent recipe supports transactional (single-turn) agents. Future development will incorporate support for conversational (multi-turn) agents. In this case, while you can imagine a user chatting with the industry tracking agent, what gets evaluated is how the agent responds to the first query.

Prepare an input dataset#

As is true for LLM evaluation, agent evaluation requires an input dataset containing columns representing certain pieces of information. The presence of these columns dictates the kind of metrics you’ll be able to compute. The tables below lay out these types of columns and where they’re found in the starter project’s evaluation dataset.

Three of these columns are straightforward to understand.

Column	Contents	Evaluation data
Input	A user prompt or question sent to the agent.	query
Output	The agent’s response to the user input.	llm_output
Actual tool calls	An ordered array of agent tool calls in response to user input.	Nested within llm_raw_response

Two additional (optional) columns deserve an explanation.

Column	Contents	Evaluation data
Ground truth	A suitably ‘correct’ (expected) response from an agent to user input.	reference_answer
Reference tool calls	The expected ordered array of agent tool calls in response to user input.	reference_tools

Your ability to collect these two columns may vary depending on the use case and lifecycle stage. For example:

Phase	Collecting evaluation data
Pre-deployment	The agent builder might simulate their own queries to the agent to inspect its responses. Assuming they’re satisfied with the agent’s behavior, these responses could serve as ground truth and reference tool call data.
Post-deployment	Once deployed, you’ll have logs from interactions between users and agents. You’ll need to fetch and prepare these logs into the necessary format for evaluation.

Review the evaluation data for this project:

From the Flow, open the agent_response_with_generated_reference dataset.
Explore the data, with particular attention to the five columns mentioned above.

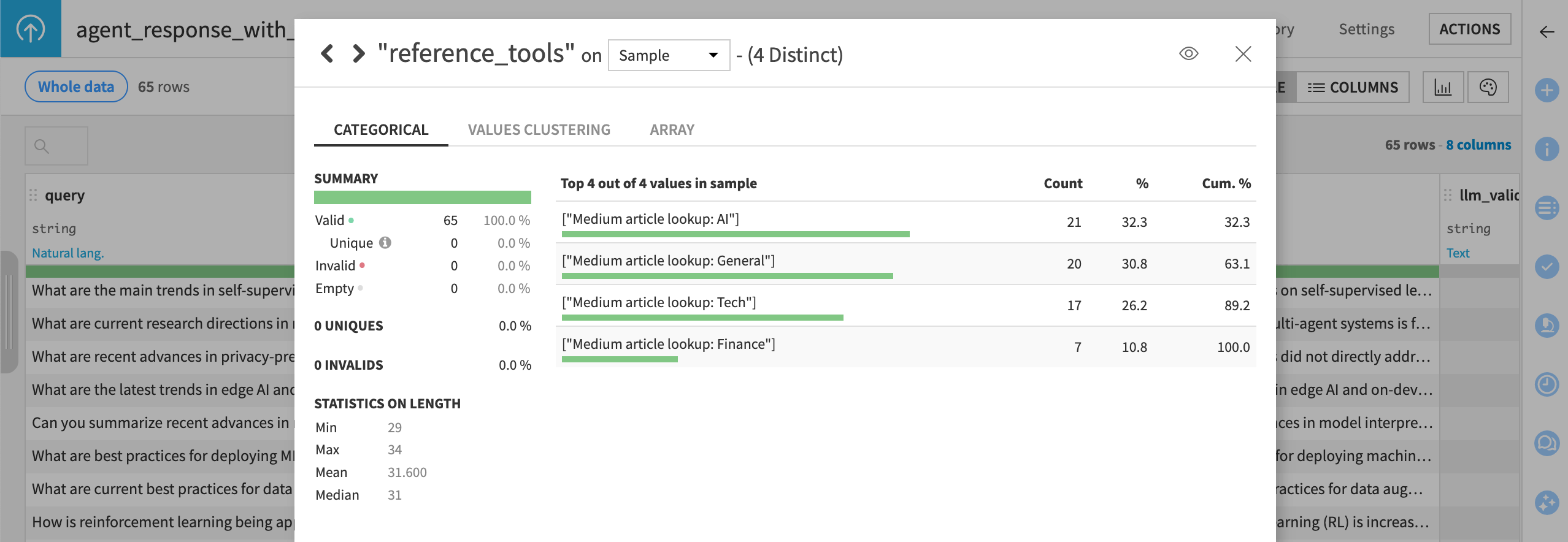

From the reference_tools column header, select Analyze to review the expected tool call arrays.

Important

The reference_tools column codifies a key component of the agent’s definition of success. For each user query, the expectation is the agent will make exactly one tool call — to the most relevant industry knowledge bank.

Create an Evaluate Agent recipe#

Once you have the necessary input dataset, configuring the recipe for agent evaluation should feel familiar to users with experience of model or LLM evaluation in Dataiku.

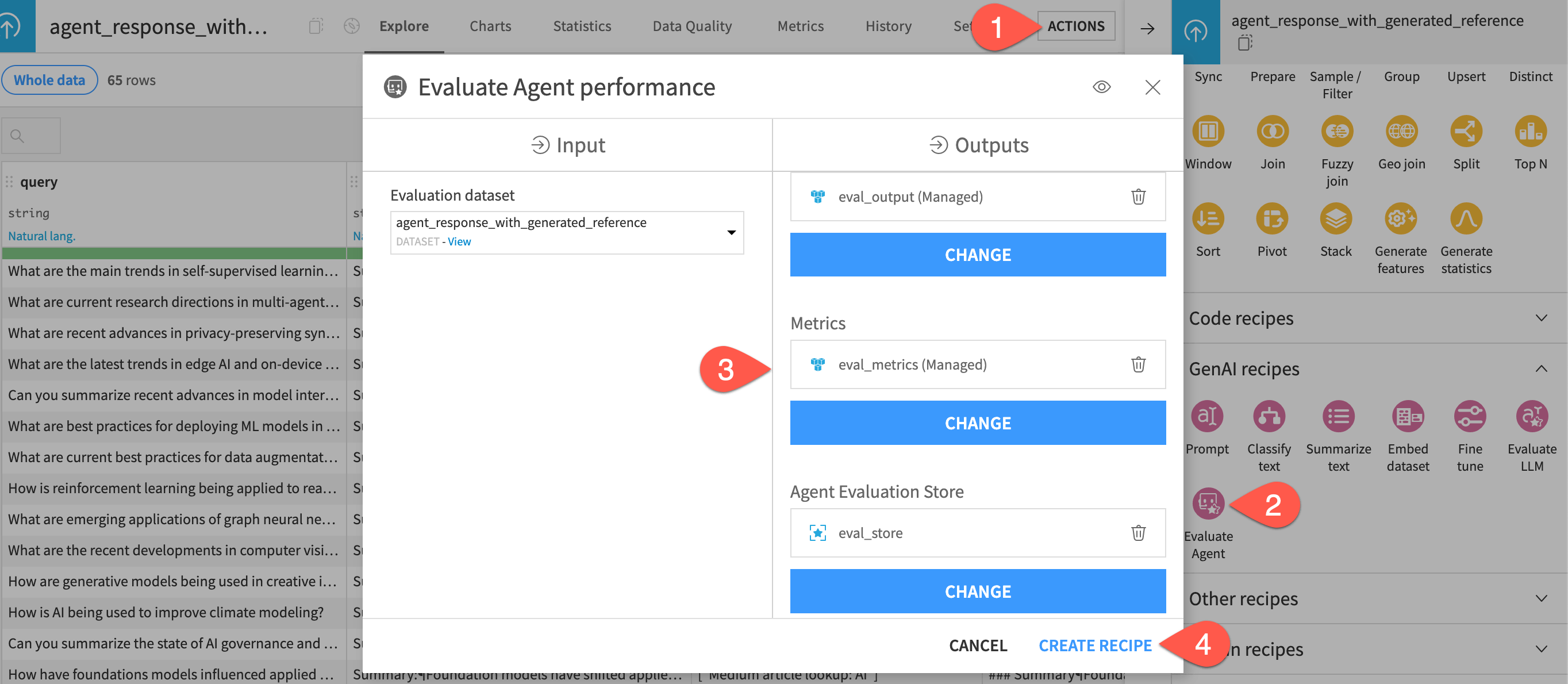

From the agent_response_with_generated_reference dataset, open the Actions panel.
From the menu of GenAI recipes, select Evaluate Agent.
Set the following three outputs:
- eval_output as the output dataset
- eval_metrics as the metrics dataset
- eval_store as the evaluation store
Click Create Recipe.

Configure the Evaluate Agent recipe#

Configuring the Evaluate Agent recipe has two main parts:

Assigning input columns to their function.
Choosing which metrics to compute.

Input dataset mapping#

The input evaluation data for this tutorial is the output of a Prompt recipe. (You may have recognized column names like llm_raw_query and llm_raw_response). For such cases, the Evaluate Agent recipe has a convenient option for automatically assigning certain columns to the correct metric computations.

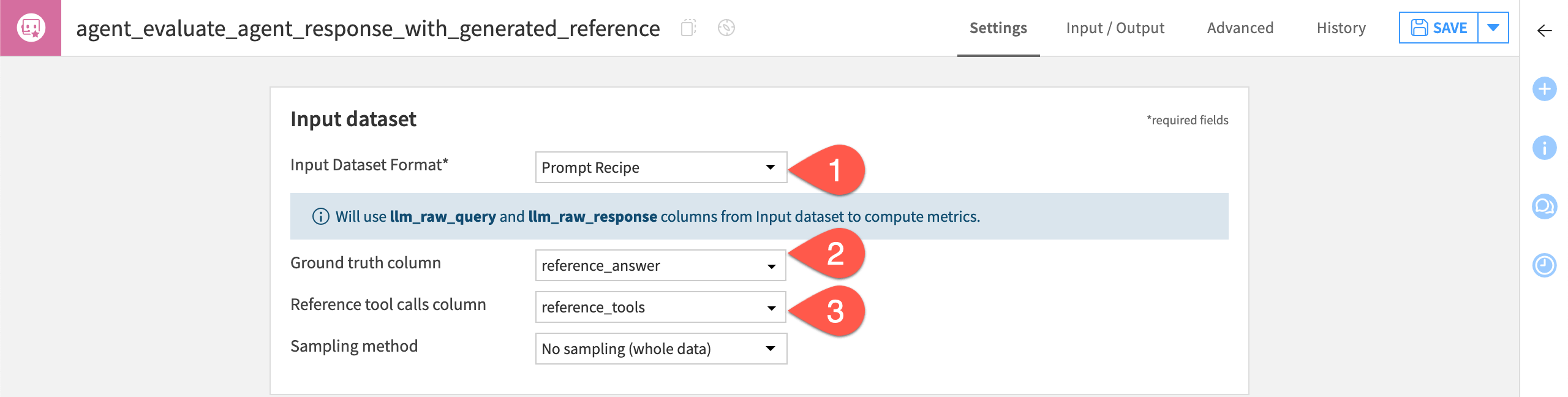

In the Input dataset tile, for the Input Dataset Format, select Prompt Recipe.
For the Ground truth column, select reference_answer.
For the Reference tool calls column, select reference_tools.

Select metrics to compute#

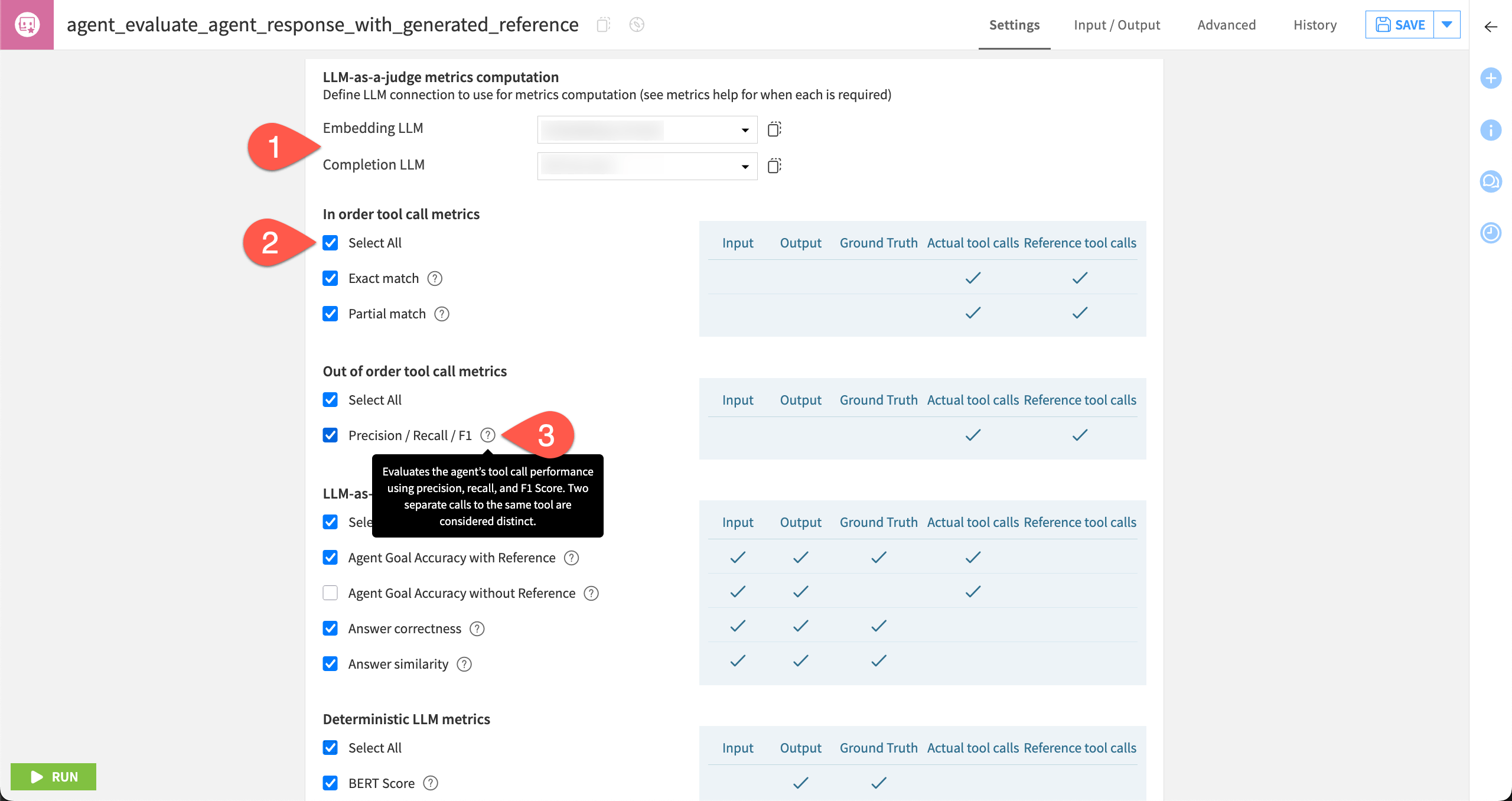

Once you’ve assigned the correct columns, the next step is selecting the metrics. The shaded box to the right of each metric indicates the required columns.

Tool call metrics#

Tool call metrics require a column of reference tool calls and actual tool calls.

In the present case, when given a query like “What are current research directions in multi-agent systems?”, the reference tool call (the expected tool call sequence) would be ["Medium article lookup: AI"]. That’s because, for this query, the agent should:

Recognize it’s an AI topic.
Search the knowledge bank specific to the AI industry.
Return a summary of the articles it found in that knowledge bank.

Given this clear definition of success, an exact match is likely the most relevant tool call metric for this particular use case. However, many other cases require a multi-tool workflow. In such cases, the metric of most interest may be the proportion of correct tool calls.

LLM-as-a-judge metrics#

Like with LLM evaluation, you can use an LLM to judge the responses from the agent.

To compute LLM-as-a-judge metrics, select an Embedding LLM and a Completion LLM.
As this project’s evaluation dataset includes all five possible columns, click Select All for all four sections of metrics.
Hover over the question mark () icons to review exactly what each metric computes, and see the shaded box to the right to view the required columns.

Custom metrics#

Alongside the built-in metrics, you can also define your own custom metrics. You can do this using Python (similar to custom LLM evaluation metrics). But you can also define assertions in natural language to check against the agent’s results (an LLM-as-a-judge approach).

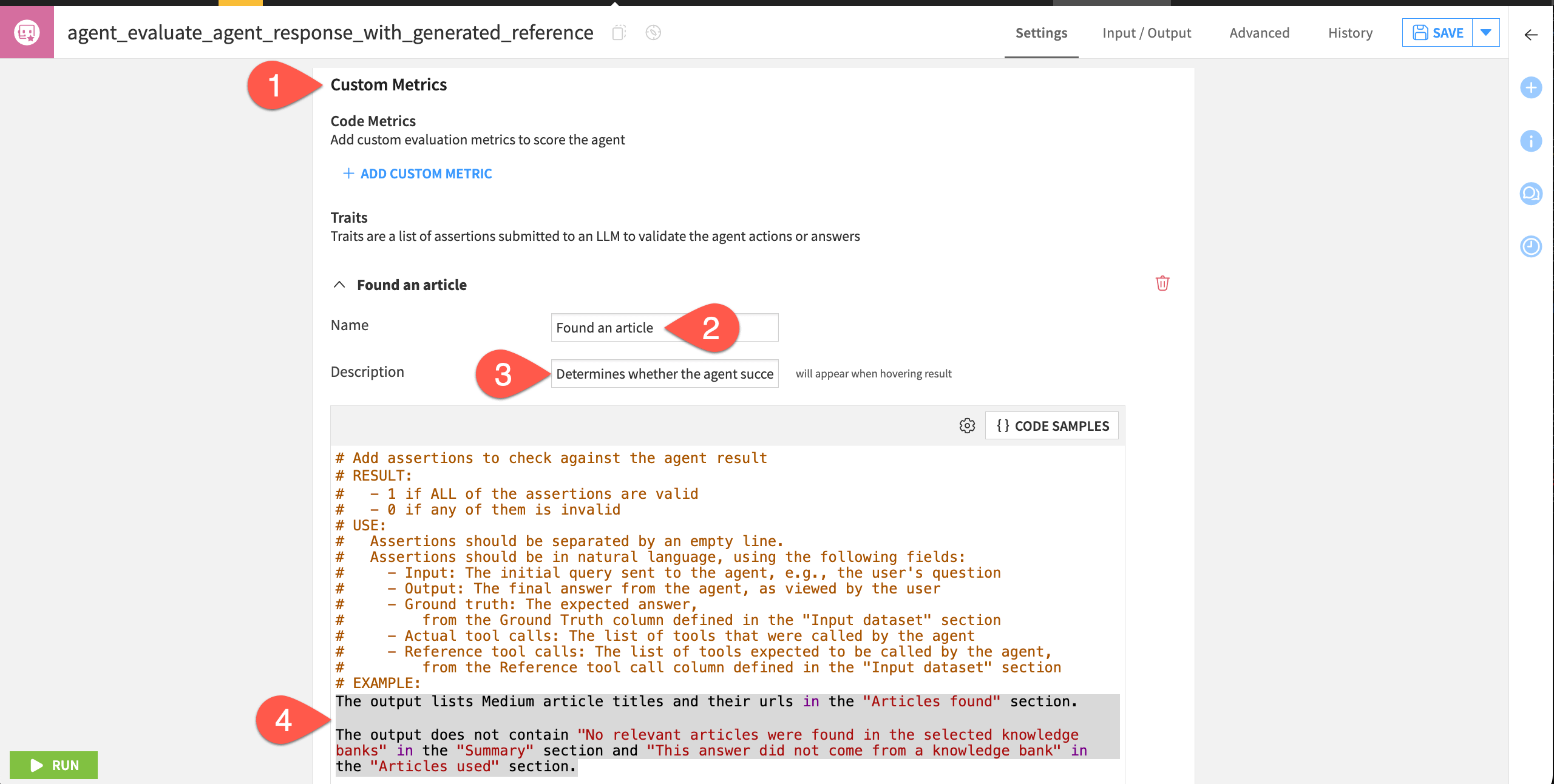

In the Custom Metrics section, click + Add Custom Trait.
Name it Found an article.
For the description, copy-paste: Determines whether the agent successfully found an article to summarize.

Under the commented example, provide the snippet below:

The output lists Medium article titles and their urls in the "Articles found" section.

The output does not contain "No relevant articles were found in the selected knowledge banks" in the "Summary" section and "This answer did not come from a knowledge bank" in the "Articles used" section.

Run the evaluation#

When satisfied with the configuration of metrics, you can execute the recipe.

In the Python environment section, confirm that you have selected a compatible code environment as mentioned in the prerequisites.
Click Run, updating the output schema as needed.

Analyze the results of an agent evaluation#

Once the recipe has finished executing, you can explore the outputs.

Explore the evaluation store#

First, check the GenAI evaluation store, including how to use the trajectory explorer.

Open the eval_store to find the selected evaluation metrics.
For the first evaluation, click Open to view a summary.

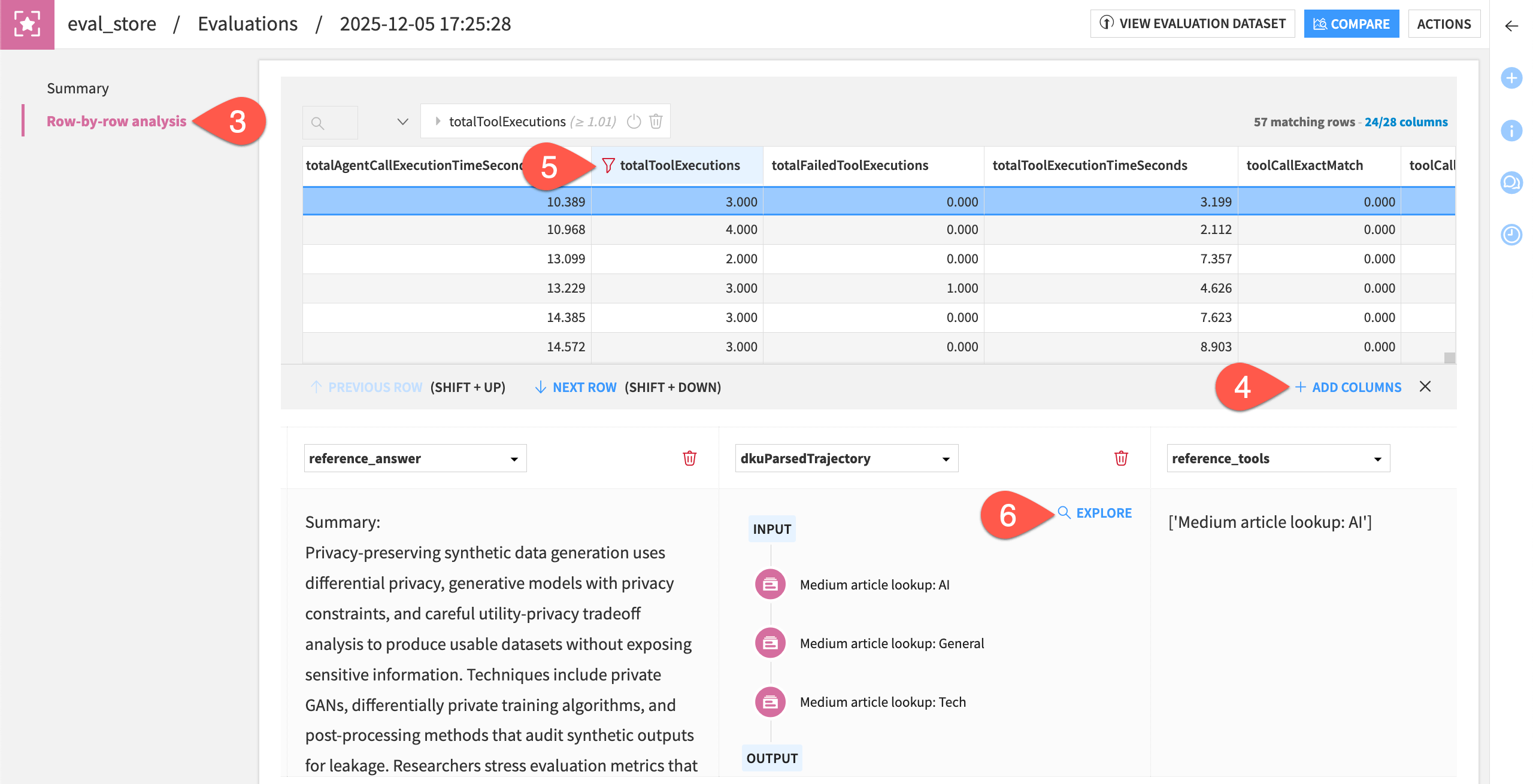

Go to the Row-by-row analysis panel.
Explore the output for a few rows, clicking + Add Columns to inspect columns like totalToolExecutions, toolCallExactMatch, and the custom trait Found an article.
To find the wayward results, filter for rows with totalToolExecutions greater than 1.
For the dkuParsedTrajectory column, click Explore to visualize the tool call trajectory.

Tip

While your exact results may differ, in the case above, the agent started with the correct call, but then made two unexpected calls to other knowledge banks. Investigating issues like this is why you do agent evaluation!

If the agent triggered any guardrails, those would also appear in the trajectory explorer.

Explore the output and metrics datasets#

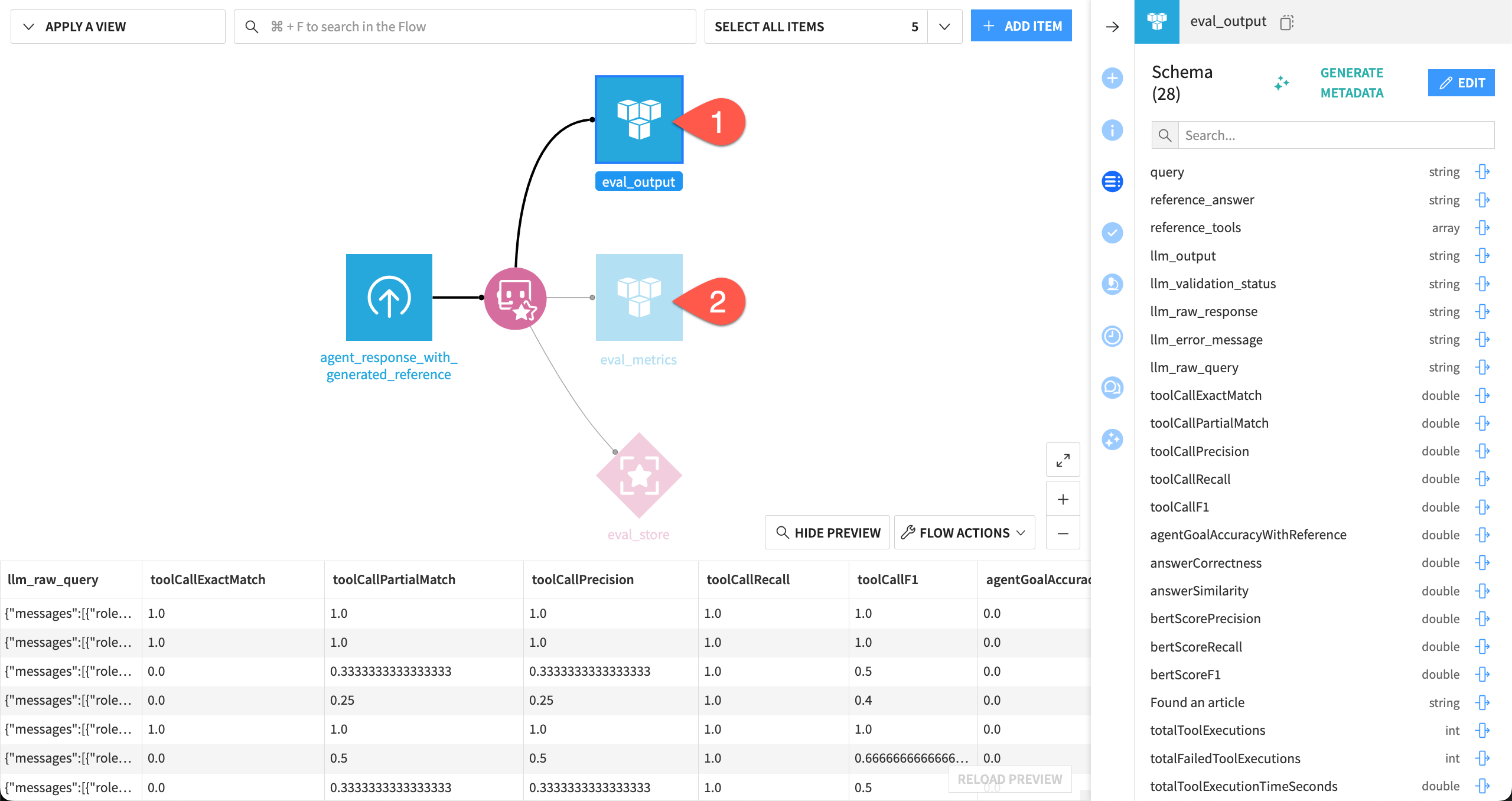

Similar to other evaluation recipes, the Evaluate Agent recipe can also output results in a dataset format:

One dataset containing the input dataset, plus the computed metrics.
One dataset containing just the metrics.

Open the eval_output dataset, and observe the addition of the metrics to the input dataset’s schema, beginning with toolCallExactMatch.
Open the eval_metrics dataset, and find the same metrics without the input data, identified by the timestamp of the evaluation.

Tip

These datasets can be particularly useful as inputs to other processes such as webapps and/or dashboards.

Compare agent evaluations#

Of course, a single evaluation is just the first step. As you ingest new data, or make changes in your upstream GenAI pipeline, you can compare evaluations — much like you do with model comparisons.

You may have noticed the custom trait Found an article did a poor job in accurately identifying cases where the agent found an article. Try refining it before running a second evaluation.

Open the Evaluate Agent recipe.

For the Found an article trait, replace the assertions with the text below:

The output does not contain "No relevant articles were found in the selected knowledge banks."

The output section "Articles used" lists Medium article titles and their urls.

The output section "Summary" does not contain "No relevant articles were found in the selected knowledge banks".

Click Save, and then Run to execute the recipe a second time.

Aside from the Found an article metric, you’d expect the other evaluation results to be stable — accounting for variation in LLM-powered metric outcomes.

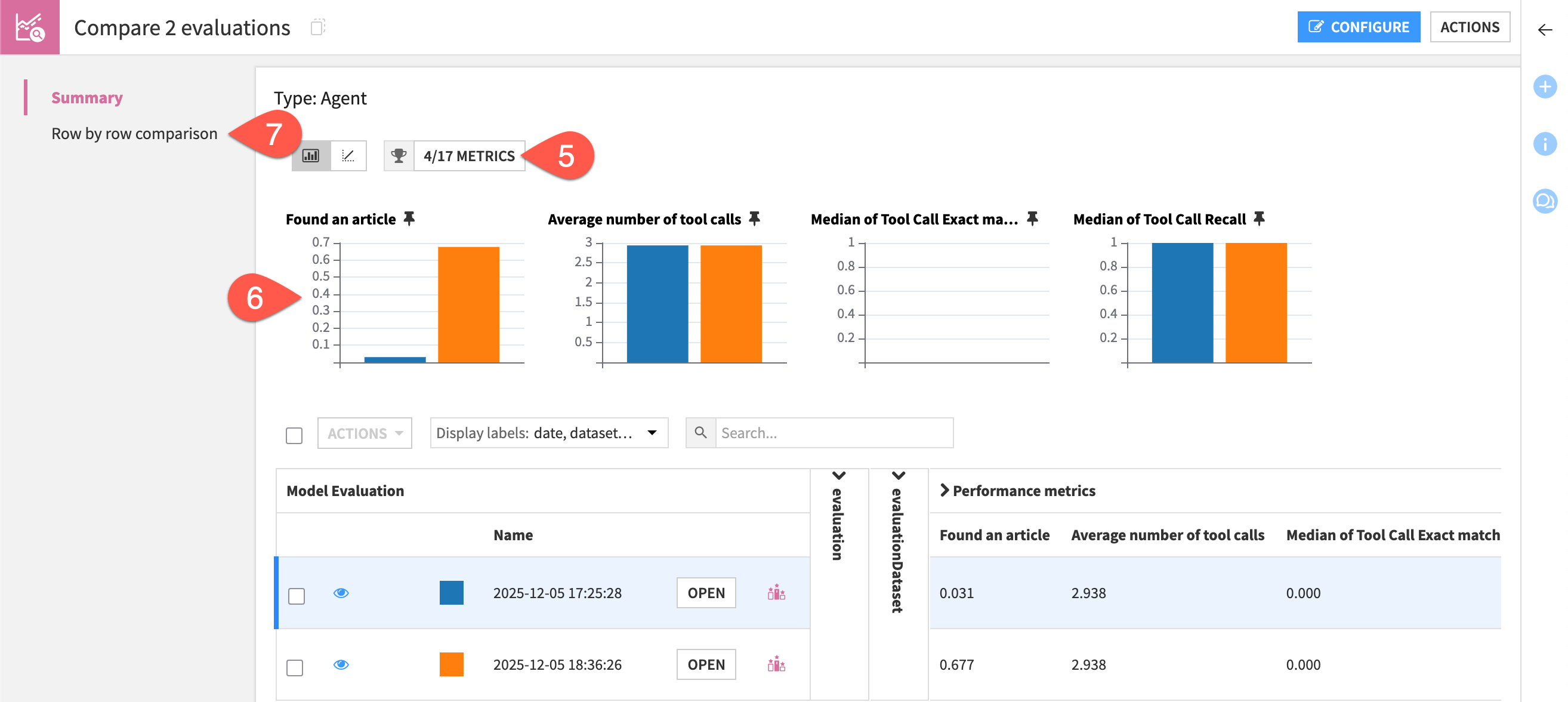

Open the eval_store to observe the results of the second evaluation in relation to the first.
Check the box to the left of the Actions button to select all evaluations.
Click the Actions button, and select Compare.
In the dialog, click Compare to create a new comparison.
Filter the visualization gallery to show Found an article and any other metrics you’d like.
For this LLM-as-a-judge metric, note how changing the assertions sharply impacted this result.
Go to the Row by row comparison to inspect cases that changed from false to true.

Tip

Adding metadata to evaluations can help keep track of what you’re evaluating. It works the same as labeling LLM evaluations.

Automate the agent lifecycle#

The Evaluate Agent recipe outputs a GenAI evaluation store. You can incorporate it into Dataiku’s standard automation toolbox of checks and scenarios.

Tip

If you’re unfamiliar with features like checks and scenarios, start with the Academy course on Data Quality & Automation.

In this case, the exact tool call match is the metric for complete success, but this agent is rarely perfect. A lower barrier of success is tool recall. In other words, did the agent call the correct tool at any point in its trajectory? (Even if the agent also called incorrect tools).

As with any evaluation store metric, you can create a check on it.

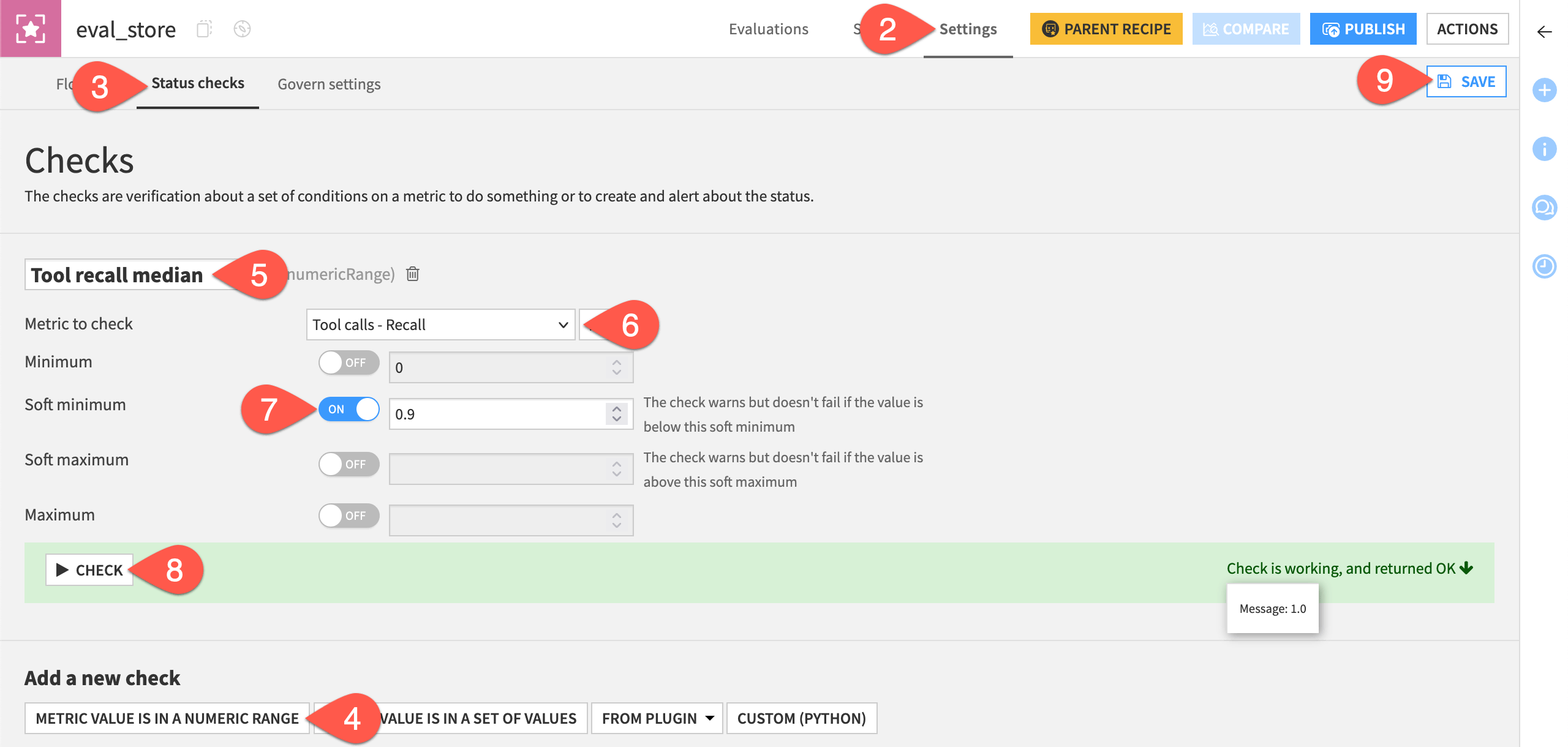

Open the eval_store.
Navigate to the Settings tab.
Go to the Status checks subtab.
Click Metric Value is in a Numeric Range.
Name the check Tool recall median.
For the metric to check, select Tool calls - Recall.
For this case, set a Soft minimum of 0.9.
Click Check to test it.
Click Save.

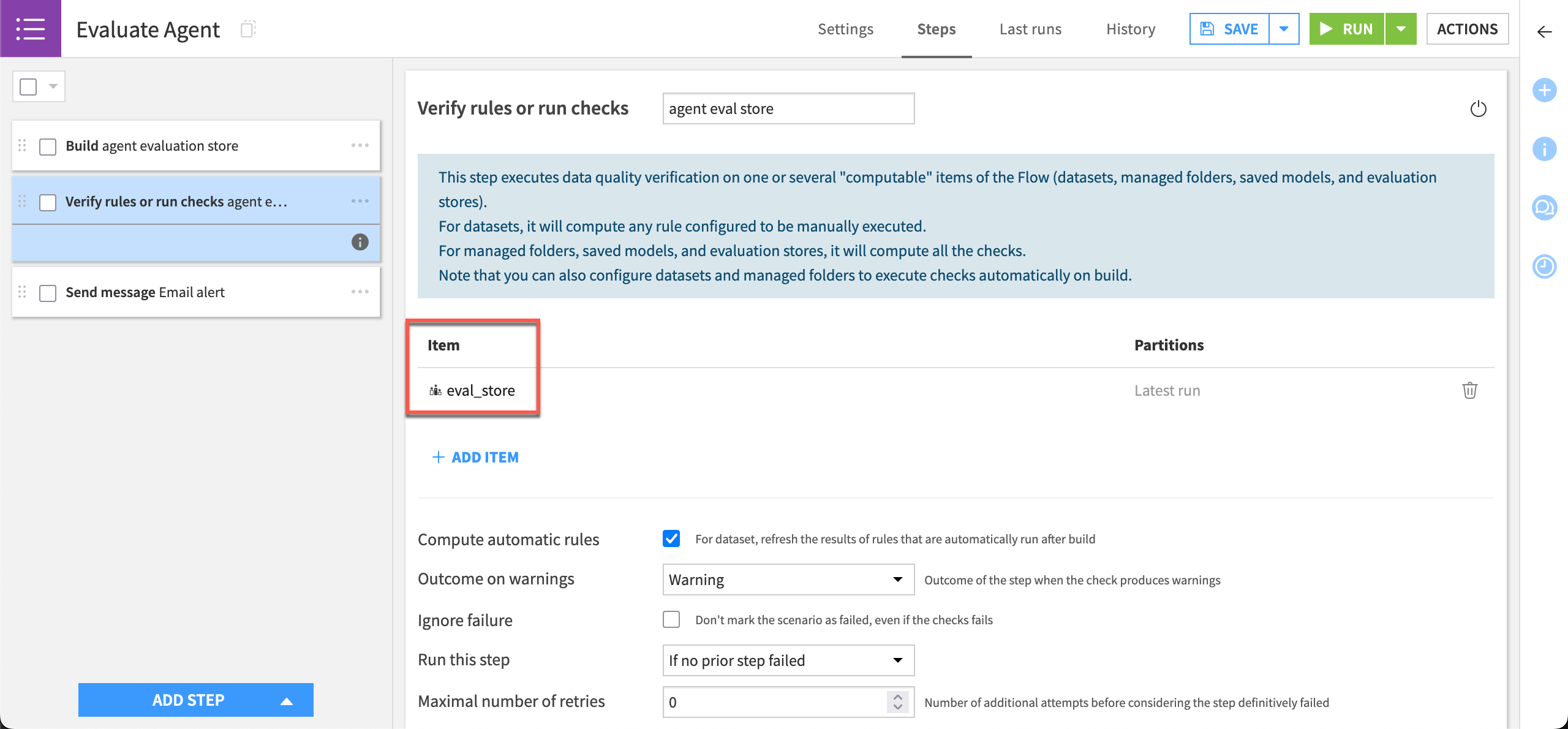

Once you have a check on a valuable metric, you can create a scenario like the one below to send a notification if it deviates from the expected range.

Important

For simplicity, this tutorial remains in the Design node, replicating how you might perform agent evaluation in a pre-deployment phase. However, you can apply the same approach for post-deployment monitoring.

First, you’d deploy the agent — following Dataiku’s standard practices for deployment. Then, instead of generating a reference evaluation dataset yourself, the input dataset to the Evaluate Agent recipe would be the logging dataset from your production environment. You’d prepare these logs to match the recipe’s requirements given the metrics relevant to your use case.

To learn more about working with production environments in Dataiku, see the MLOps Practitioner learning path.

Next steps#

Congratulations! You’ve seen how the Evaluate Agent recipe can assess the performance of a GenAI application including an agent. You’ve also seen how it fits into Dataiku’s broader operationalization ecosystem.
