Concept | Data lineage#

Watch the featurette

The Data Lineage view allows you to track where data originated, how and where it changed over time, and its journey through your data pipeline.

Data Lineage can help you investigate the root cause of a data issue by tracking the changes made to a column upstream. It can also identify downstream impacts of changes you’d like to make to a dataset and notify impacted users.

Data Lineage view#

The Data Lineage view is a chart showing a selected column and its transformations, from data ingestion to the end of a data pipeline, including across projects. You can see how a column was created and used in a pipeline by following the connecting lines in the chart.

Screenshot of the Data Lineage view for a sample project.

Chart elements#

The chart includes several important elements.

The top bar shows the base project, dataset, and column that the lineage originated from. Click on any of them to navigate to that element, or use the Change Lineage button to choose another project, dataset, or column to view.

The top bar shows the base project, dataset, and column.

The lineage chart includes boxes for all the datasets in the column’s lineage. These boxes include:

  • The dataset name at the top.

  • The project name (in grey for the base project and randomly assigned colors for other projects).

  • The Flow zone the dataset is in, if applicable.

  • The base column for the lineage, highlighted in blue.

Double-click on the dataset name, project name, zone name, or recipe icon to open them in another tab.

Dataset boxes show the dataset name, project, and Flow zone.

To denote the lineage of a column, two different kinds of lines connect the dataset boxes:

  • Grey lines that connect datasets, with recipes shown in the middle.

  • Blue lines that connect columns in the lineage.

Two kinds of lines connecting dataset boxes.

Defining lineage#

Some recipes have blue question mark buttons in the top right corner. This means the lineage couldn’t be automatically computed with certainty and is based on simple name-based matching.

You can review and update the lineage by clicking on the blue button and adding or removing column relationships as necessary.

You can define relationships among data columns.

Right panel#

Select a dataset box in the chart to view the right panel. This panel includes three tabs:

  • Details, which includes several actions, information about the project, and related Flow elements.

  • Schema, with buttons to change the lineage base column.

  • Data quality, with data quality rules and statuses, if they have been set up.

The right panel includes three different tabs with information and navigation.

Exporting the chart#

You can export the data lineage chart as a PDF or image using the Export button in the bottom right.

Use the button in the bottom right to export the chart.

Sharing data lineage changes#

You can share information about data lineage changes or issues with the dataset stewards listed on the dataset. By default, the data steward is the user who creates a dataset, though you can edit data stewards in the right panel.

When you click on the Notify Data Stewards button, you can choose which stewards to send an email to. Dataiku will automatically list the relevant datasets for each data steward in the email, and you can edit the message you’d like to send.

The Data Lineage tab in the Data Catalog.

Accessing the view#

You can access the Data Lineage view in several ways:

Starting point

User action

A dataset’s Explore tab or Prepare recipe settings

Right-click on a column name, and select See column lineage.

A dataset’s right panel

Go to the Schema (Schema icon.) tab and click the data lineage (Data lineage icon.) icon.

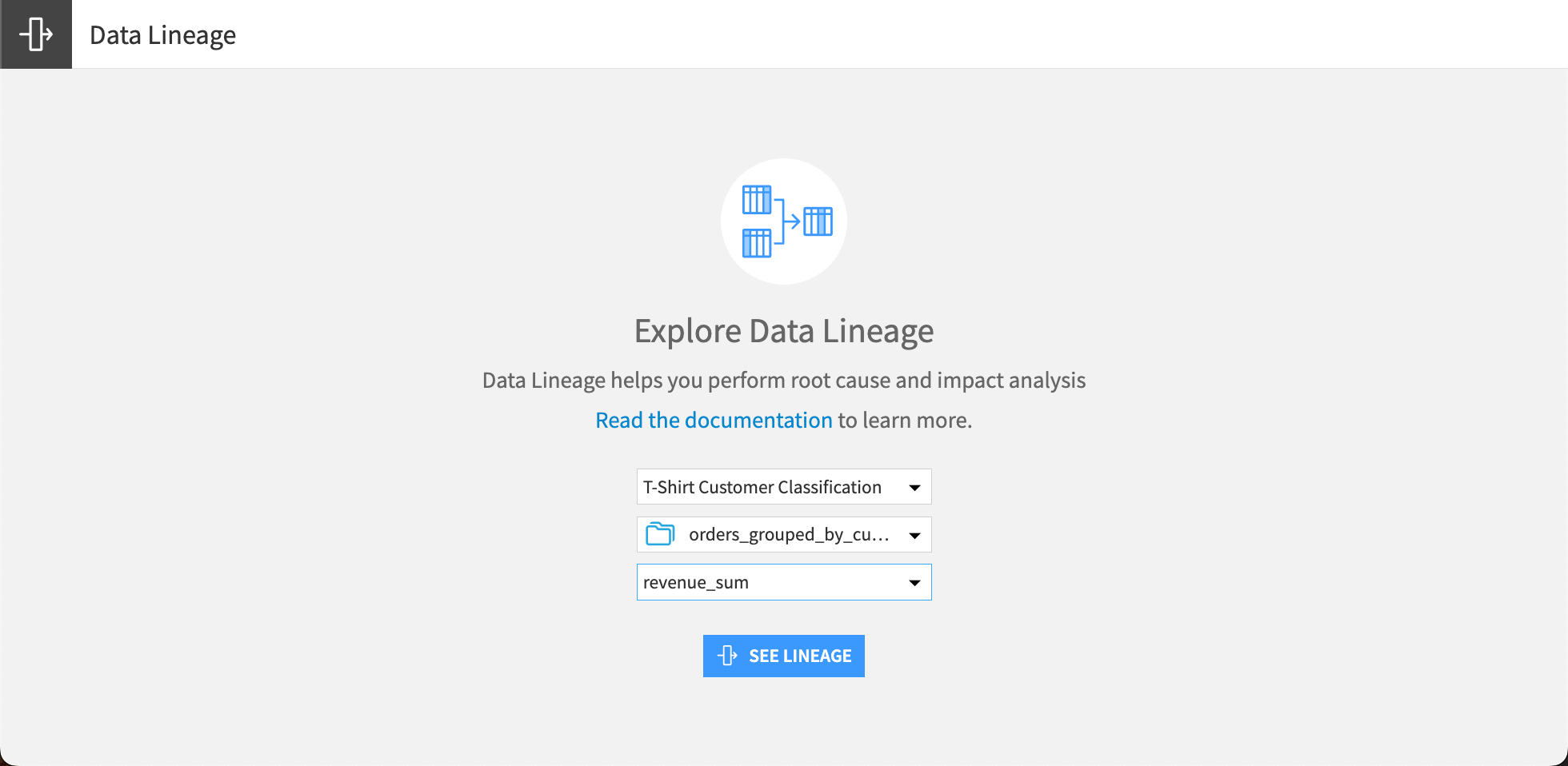

The waffle menu

Go to the waffle (Waffle icon.) menu in the top navigation bar, then choose the project, dataset, and column you’d like to view.
Explore view for the data lineage.
